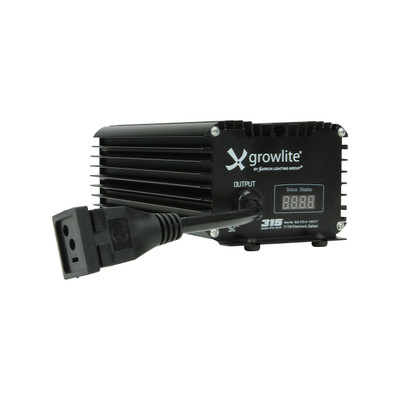

315W CMH Electronic Ballast

ELECTRONIC BALLAST 315W 120-277V
The newest generation of the 315w CMH ballast was developed to optimize the output of our 315w CMH lamps. Our lamp and ballast are tuned to work together at over 99% efficiency when operated together, you will receive less color shifts, lower lamp temperatures, and less frequency humming.

Performance Data

Rated Voltage

AC90-305 VAC

Input Frequency

50/60 Hz

Ambient Operating Temperature (TA)

-25°C ~ 50°C (-13°F ~ 122°F)

Crest Factor (CF)

<1.5

Power Factor (PF)

≥0.95

Max case temperature

&lt80°C (<176°F)

Total Harmonic Distortion (THD)

<20%

Current Draw

2.84A @ 120VAC, 1.42A @ 240V, 1.23A @ 277VAC

Ordering Information

Part Number

Description

AVAILABLE WHILE SUPPLIES LAST

GLB-315-A-120/277

315w CSI Digital Ballast, Operates all Single-Ended and Double-Ended 315w CMH Lamps Only, 120-277VAC

Features

CMH lamps

LED status display

Soft Start stabilizes start-up loads and extends lamp life & performance

Low frequency (<200 Hz), Constant output

6' 120VAC power cord provided

120/208/240/277VAC voltage sensing input

3 year warranty

Protections

Short circuit

Open circuit

End of Lamp Life (EOL)

Hot-Start

Ignition Failure

Overheat

Over/Under voltage

Technical Specifications

ATTRIBUTE

DESCRIPTION

Wattage:

315W

Input Voltage:

120-277VAC

Amps:

120V - 2.63A @ 315W, 277V - 1.14A @ 315W

Weight:

5.50 LBS

Dimensions:

8.75 x 5.07 x 3.13 (in)
