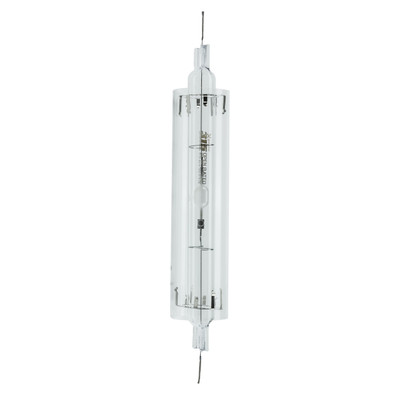

315W Double Ended Full-Spectrum CMH Lamp

The Growlite CMH 315-CSI-DE provides commercial growers using double-ended fixtures the ability to grow with the quality spectrum provided by a 315 CMH lamp.

Etched Branding

Open Rated

Superior Lamp Construction

Packaging

Performance Data

Initial PPF (400-700nm)

512

μmol/s

Initial Total Luminus Flux (380-780nm) @ rated watts after 100 hrs operation

31,460

lm

Color Temperature

4000

K

Color Rendering Index

95

Operating Position

Universal

Hot Re-strike time

10

min

Rated Average Life

20,000

h

Fixture Rating

Open/Enclosed

Recommended replacement guide for indoor growers

12 mo

Based on 12 hrs per day

Compatible Reflectors

Archon

HDE-8

Ordering Information

Part Number

Description

GLL-315-CSI-DE

315W Double-ended Full Spectrum Ceramic Metal Halide Lamp

Physical Description

Maximum Overall Length

394 (15.5)

mm (in)

Light Center Length

195 ± 5 (7.7 ± 0.2)

mm (in)

Bulb Diameter

61 (2.4)

mm (in)

Maximum Base Temperature

300°C (572°F)

°C (°F)

Maximum Bulb Temperature

650°C (1,202°F)

°C (°F)

BTU's Required for Cooling*

1,200

Per Lamp

Bulb Designation

T10

Base Designation

K12x30s

Electrical Characteristics

Nominal Lamp Wattage

315

W

Nominal Lamp Voltage

100

V

Nominal Lamp Current

3.15

A

Ballast Requirements ANSI

C182/O

Socket Rating

≥ 5

KVA

Technical Specifications

ATTRIBUTE

DESCRIPTION

Wattage:

315W

Input Voltage:

100V

Amps:

3.15

Initial PPF:

512 μmol/s

Weight:

1.00 LBS

Dimensions:

16.50 x 3.25 x 3.25 (in)
