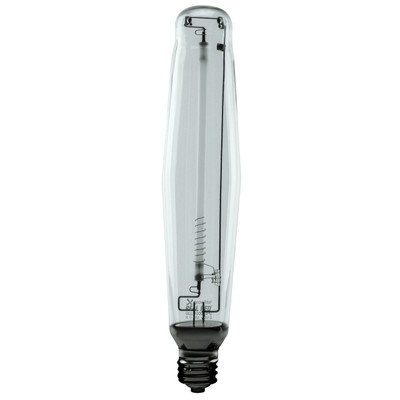

Real Red Mogul Base HPS 1000W

REAL RED SE HPS lamps provide growers the powerful deep-red spectral energy to be operated in standard screw-in, mogul base fixtures. Single-ended HPS lamps run cooler than DE lamps making them a great choice for commercial facilities and home growers looking to reduce heat levels. REAL RED SE lamp performance is maximized when operated in the OG and CONVEX fixtures.

Etched Branding

Arc Tube & Getters

Superior Lamp Construction

Packaging

Performance Data

Initial PPF (400-700nm)

1750

μmol/s

Initial Total Luminus Flux (380-780nm) @ rated watts after 100 hrs operation

140,000

lm

Color Temperature

2000

K

Color Rendering Index

25

Operating Position

Universal

Hot Re-strike time

3 - 5

min

Rated Average Life

32,000

h

Fixture Rating

Open/Enclosed

Recommended replacement guide for indoor growers

12 mo

Based on 12 hrs per day

Compatible Reflectors

OG

HSE-Convex

Ordering Information

Part Number

Description

GLL-1000-HPS

1000W REAL RED HPS horticulture lamp

Physical Description

Maximum Overall Length

382 (15.0)

mm (in)

Light Center Length

225 ± 5 (8.85 ± 0.2)

mm (in)

Bulb Diameter

79 (3.11)

mm (in)

Maximum Base Temperature

210°C (410°F)

°C (°F)

Maximum Bulb Temperature

400°C (752°F)

°C (°F)

BTU's Required for Cooling*

3,750

Per Lamp

Bulb Designation

ET25

Base Designation

E39 (MOGUL)

Electrical Characteristics

Nominal Lamp Wattage

1,000

W

Nominal Lamp Voltage

250

V

Nominal Lamp Current

4.7

A

Ballast Requirements ANSI

S52

Socket Rating

≥ 5

KVA

Technical Specifications

ATTRIBUTE

DESCRIPTION

Wattage:

1000W

Input Voltage:

250V

Amps:

4.7

Initial PPF:

1750 μmol/s

Weight:

1.00 LBS

Dimensions:

8.00 x 2.00 x 2.00 (in)
