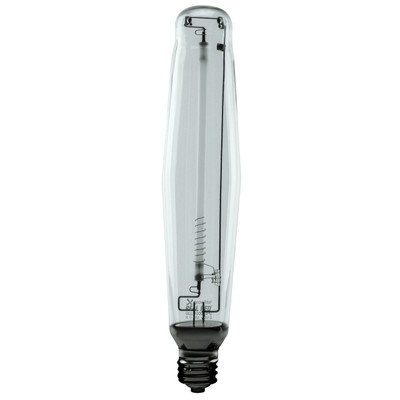

Real Red Mogul Base HPS 1000W

Wattage:
1000W
Input Voltage:
250V
Amps:
4.7
Initial PPF:
1750 μmol/s
Weight:
1.00 LBS
Dimensions:
8.00 x 2.00 x 2.00 (in)

REAL RED SE HPS lamps provide growers the powerful deep-red spectral energy to be operated in standard screw-in, mogul base fixtures. Single-ended HPS lamps run cooler than DE lamps making them a great choice for commercial facilities and home growers looking to reduce heat levels. REAL RED SE lamp performance is maximized when operated in the OG and CONVEX fixtures.

Etched Branding

Arc Tube & Getters

Superior Lamp Construction

Packaging


Performance Data

Initial PPF (400-700nm)
1750
μmol/s
Initial Total Luminus Flux (380-780nm) @ rated watts after 100 hrs operation
140,000
lm
Color Temperature
2000
K
Color Rendering Index
25

Operating Position
Universal

Hot Re-strike time
3 - 5
min
Rated Average Life
32,000
h
Fixture Rating
Open/Enclosed

Recommended replacement guide for indoor growers
12 mo
Based on 12 hrs per day

Compatible Reflectors

OG



Ordering Information

Part Number
Description
GLL-1000-HPS
1000W REAL RED HPS horticulture lamp

Physical Description

Maximum Overall Length
382 (15.0)
mm (in)
Light Center Length
225 ± 5 (8.85 ± 0.2)
mm (in)
Bulb Diameter
79 (3.11)
mm (in)
Maximum Base Temperature
210°C (410°F)
°C (°F)
Maximum Bulb Temperature
400°C (752°F)
°C (°F)
BTU's Required for Cooling*
3,750
Per Lamp
Bulb Designation
ET25

Base Designation
E39 (MOGUL)


Electrical Characteristics

Nominal Lamp Wattage
1,000
W
Nominal Lamp Voltage
250
V
Nominal Lamp Current
4.7
A
Ballast Requirements ANSI
S52

Socket Rating
≥ 5
KVA
